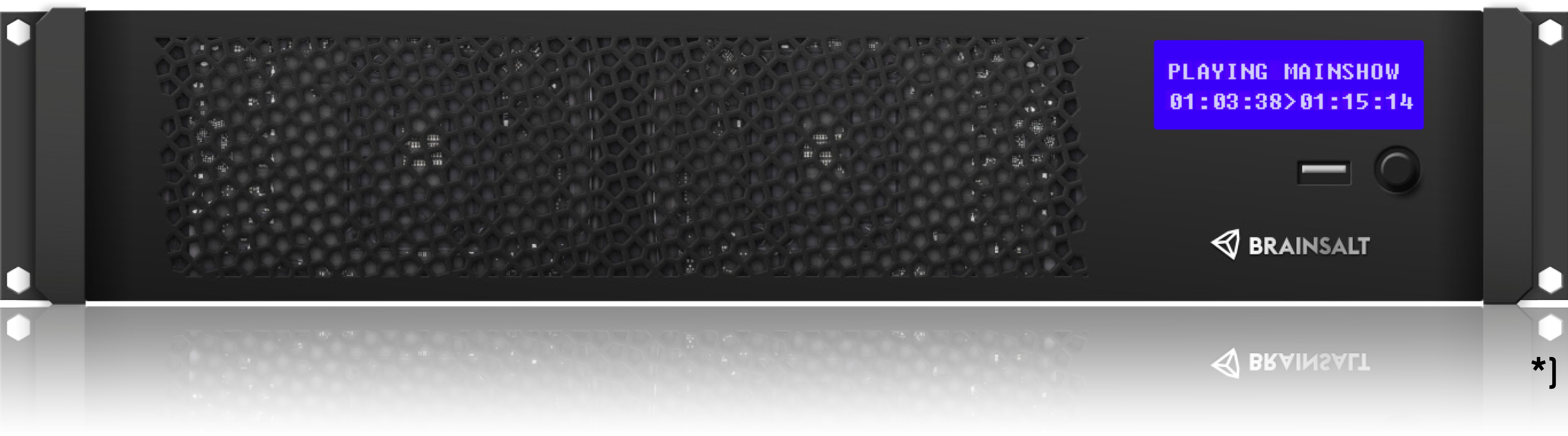

B6 HD1-ECO 30


  • Control Monitor: 1x VGA
  • Video Outputs: 1x DMS 59 for Video, Adapter to DVI/VGA included
  • Framerates: 23.976, 24, 25, 29.97, 30
  • Supports all standard output resolutions up to HD/2K and custom resolutions
  • Uncompressed 4:4:4 30Bit
  • H.264, AVC, MPEG2, MPEG1
  • Display of various still image formats
  • Most other popular video formats can be imported through Media Manager
  • Perfect Video Playback
  • Manage Playlists
  • Scheduler for unattended operation
  • Warping with Lanczos filtering
Media Manager
  • Load an manage audio and video content
  • Media Resolution up to 32K x 32K
  • Supports single frame sequences and most popular video and audio formats
  • Allows composing of videos from frame sequences or even single frames
  • Analyze and rapid review media
Conductor (Optional)
  • Compose and Edit Effects and Shows synchronous to media playback
  • Run Effects and Shows synchronous to media playback (PLAY ONLY License)
Camera Based Auto Alignment (Optional)
  • Adjust Warping and Blending automatically to always guarantee perfect image and image location on the screen over time
System Tools
  • EDID Management and Emulation
  • Easy integration with UDP and RS232 remote control Crestron® CNX protocol integrated
Sync Options
  • Optional LTC timecode input
  • Multiple units sync able (Framelock)
Standard Audio processing
  • 8 channel 48/96 KHz Audio
  • Either 4x unbalanced outputs through Mini Stereo Jacks or Optical SPDIF
  • Volume control through UDP, RS232 and Crestron CNX remote control interface
Optional Audio processing
  • Replaces Standard Audio
  • MADI, Cobranet, Dante Virtual, Balanced Analog I/Os (requires ADAT or MADI soundcard)
  • See all Audio and Video I/O Options
Media Storage
  • 275 GB SSD
Operating System
  • Microsoft Windows 7 Standard Embedded
  • 2U 19“ chassis
  • Power supply: 300W, 100V - 240V
  • Dimensions (WxHxD): 48.3 x 8.9 x 59 cm
  • Shipping Dimensions (WxHxD): 57 x 21 x 70 cm
  • Weight: 11.5 kg
*) Available Q1/16
