ProCommander Series
The ProCommander Series features solid-state show controllers built for playback of synchronous audio, animation, lighting, and mechanical action. The flexible architecture options and open control protocols allow inspired attractions to be designed without hardware limitations.

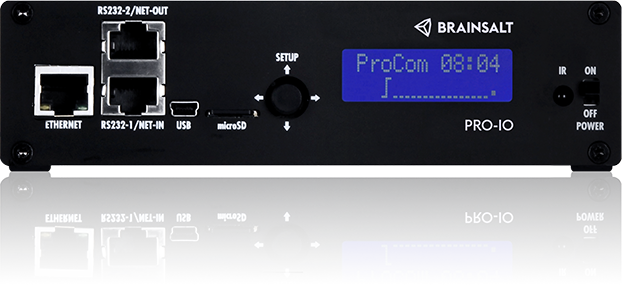

ProCommander 2
Features
- 16 digital outputs at 48VDC/500mA
- 16 digital inputs OR 8 digital and 8 analog
- 3 x RS-232 serial ports
- 512 channels of DMX output
- On-board Ethernet
- 4 x servo outputs
- User replaceable chipsets
- Mounts in 1/2 rack space
- Battery, solar and charging capable
- 8 x high powered relays optional
- IR remote control available
- High powered on-board class-D stereo amp
- Integrated DMX merger with LTP, HTP modes
- Integrated MicroSD storage for audio/timeline data
Hardware
- Power Requirements: 36 W, 12V - 24V
- External Power Supply: 100V - 240V, 24V Output
- Operating Temperature Range 0°C - 40°C (32°F - 104°F)
- Operating Relative Humidity Range 8% - 80% (non-condensing)
- Dimensions (WxHxD): 11.5 x 4.5 x 16.6 cm
- Shipping Dimensions (WxHxD): 18 x 8,5 x 28 cm
- Weight: 1.2 kg
Back View

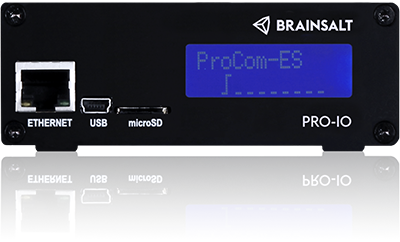

ProCommander ES
Features
- A full universe of DMX512 Output
- 8x Digital In
- 8x Digital Out
- Stereo Out
- High powered on-board class-D stereo amp
- Network Ready
- On-board Ethernet
- Mounts in 1/4 rack space
- Integrated MicroSD storage for audio/timeline data
- High power mofset transistor
Technical Highlights
- Network jack for UDP messaging and show file uploads
- Play up to 6 timelines (1 audio playback stream concurrently) to allow management of a variety of tasks around your exhibit
- Powerful Class-D amplifier provides in place amplification throughout the exhibit space
Hardware
- Power Requirements: 36 W, 12V - 24V
- External Power Supply: 100V - 240V, 24V Output
- Operating Temperature Range 0°C - 40°C (32°F - 104°F)
- Operating Relative Humidity Range 8% - 80% (non-condensing)
- Dimensions (WxHxD): 10.6 x 4.1 x 10.9 cm
- Shipping Dimensions (WxHxD): 18.5 x 6 x 25 cm
- Weight: 0.8 kg

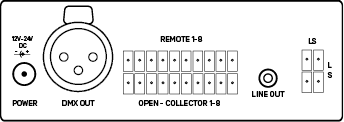

Back View

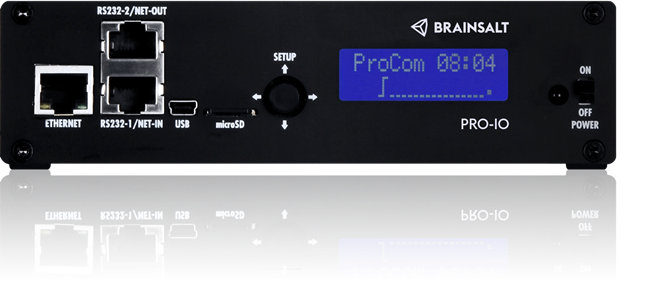

ProCommander PHX
Features
- Polyphonic Audio Layering
- Dual-zone Support
- UDP Audio Mix Control
- SMPTE Timecode In & Out
- Real Time Clock & Scheduler
- 16 digital outputs at 48VDC/500mA
- 16 digital inputs
- 2 x RS-232 serial ports (1 RS-485 capable with adapter)
- 512 channels of DMX input
- 512 channels of DMX output
- On-board Ethernet
- PNP Positive driver optional
- 8 x high powered relays optional
- IR remote control available
- 4-channel line out through RCA connectors
- 4-channel integrated amplifier
- Integrated DMX merger with LTP, HTP modes
- Integrated MicroSD storage for audio/timeline data
Hardware
- Power Requirements: 36 W, 12V - 24V
- External Power Supply: 100V - 240V, 24V Output
- Operating Temperature Range 0°C - 40°C (32°F - 104°F)
- Operating Relative Humidity Range 8% - 80% (non-condensing)
- Dimensions (WxHxD): 11.5 x 4.5 x 16.6 cm
- Shipping Dimensions (WxHxD): 18 x 8,5 x 28 cm
- Weight: 1.2 kg

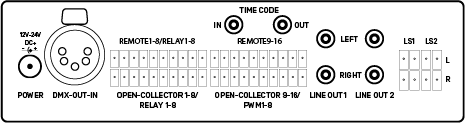

Back View
