Pro I-O Modules

Pro I-O’s offer powerful features in a small form factor. The integration of analog and digital PWM, contract closure outputs, standard ArtNet and DMX gives you the opportunity to expand the capabilities of the Conductor and ProCommander Series anywhere on a regular network system.

• DMX 512
• Digital 32
• Relay 8
• Analog 8
• Remote 16

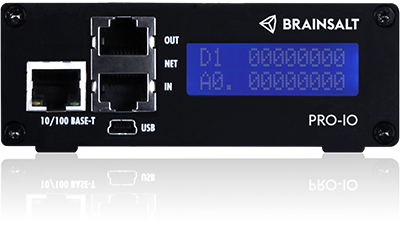

Pro I-O DMX 512

Features

• Full universe of 512 DMX channels
• 3 pin and 5 pin XLR output connector
• 5 pin XLR input
• DMX recording
• DMX merging (HTP, LTP, ADD, Change, & Combine)
• Selectable DMX frame rate from 10fps to 44fps
• Display of 16 selectable DMX channels in alpha numeric display

[ Error ]

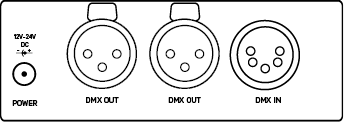

Back View

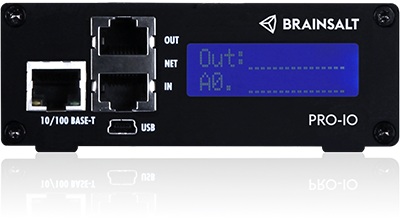

Pro I-O Digital 32

Features

• 32 open collector digital channels outputs
• Up to 400mA per channel
• Available with NPN (negative) or PNP (positive) output driver
• Display of ON/OFF status of the outputs
• DMX read in for DMX to digital out conversion (via ArtNet)
• Overvoltage protection
• Short circuit protection with PNP driver output
• 48V/500mA output driver

[ Error ]

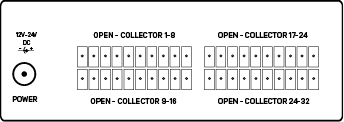

Back View

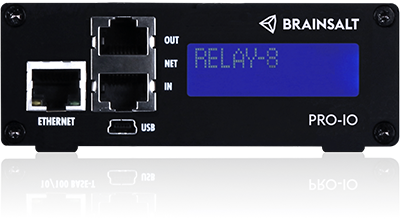

Pro I-O Relay 8

Features

• 8x Relay outputs
• 48V/3A switching load
• Display of ON/OFF status of the outputs
• DMX read in for DMX to relay conversion (via ArtNet)


[ Error ]

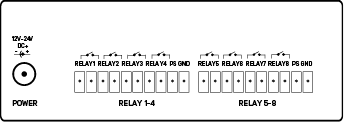

Back View

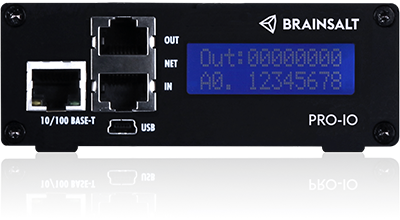

Pro I-O Analog 8

Features

• 8x 0-10V analog outputs
• Up to 300mA per output channel
• 50mA output driver
• On screen level display for each output
• DMX read in for DMX to analog conversion (via ArtNet)
• Short circuit protection

[ Error ]

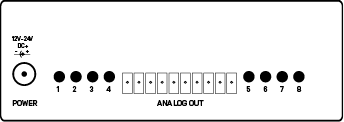

Back View

Pro I-O Remote 16

Features

• 16x digital inputs
• Onboard storage for ASCII scripting
• Send serial or network messages to any network device

[ Error ]

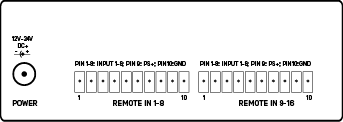

Back View
